Fire truck

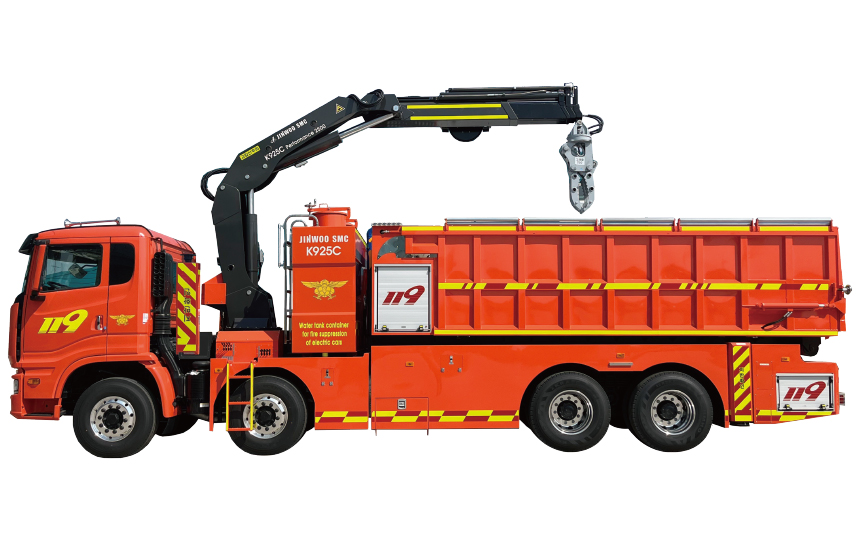

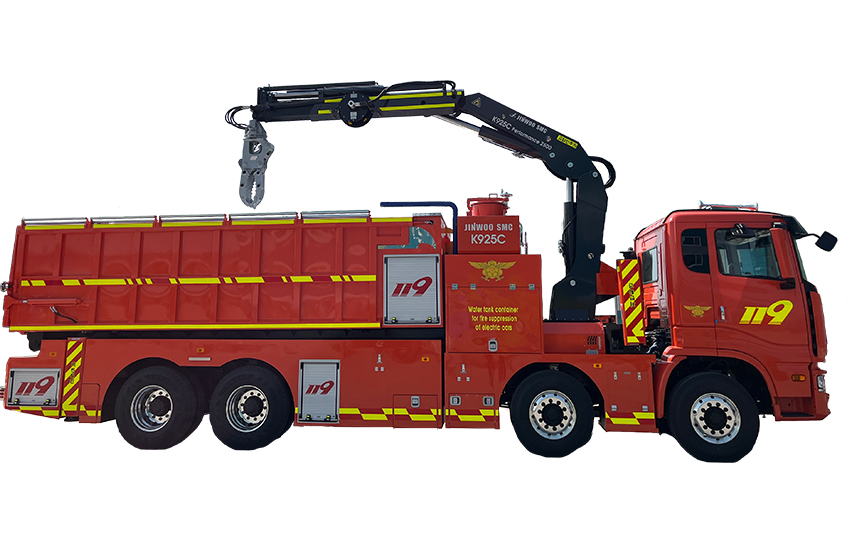

Water tank container for fire suppression of electric cars(JWF K925C)

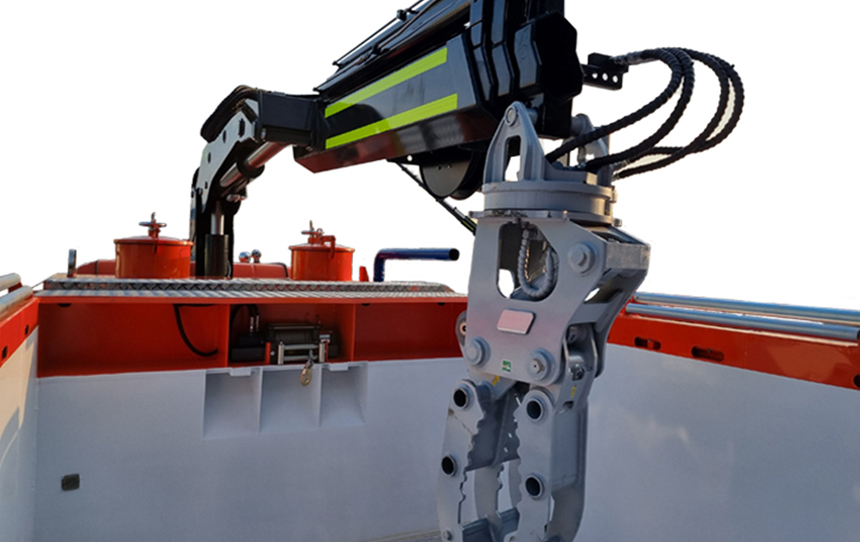

Embodied with compact folded-form Knuckle Crane possessing strong Traction Force, enables lifting of fire-accident prone Electric Vehicles(EV) without restrictions from road or any accident area conditions.
Knuckle Crane’s turntable operates smoothly allowing easier and faster operations in limited and constrained spaces.
Efficiently proactively prevents re-ignition of batteries due to Thermal runaway by infusing external water into the tilt-able type container to sufficiently submerge the battery of the fire-accident prone Electric Vehicles.
Water-filling container can be rapidly and easily replaced as-when-required, thereby spontaneously respond to multiple EV Fire accidents.

Contents	Water tank container for fire suppression of electric cars
Overall length	11,550mm
Overall height	3,950mm
Overall width	2,490mm
Vehicle gross weight	36,200kg
Engine output	480ps / 1,900rpm
Drive Type	8x4
Water tank	3,000ℓ
Outrigger	H-H Type
Knuckle Crane	Lifting capacity: 2,500kg or more
Knuckle Crane	working radius: 9m or more
Container to fill Water	Winch pulling force: 3,000kg or more

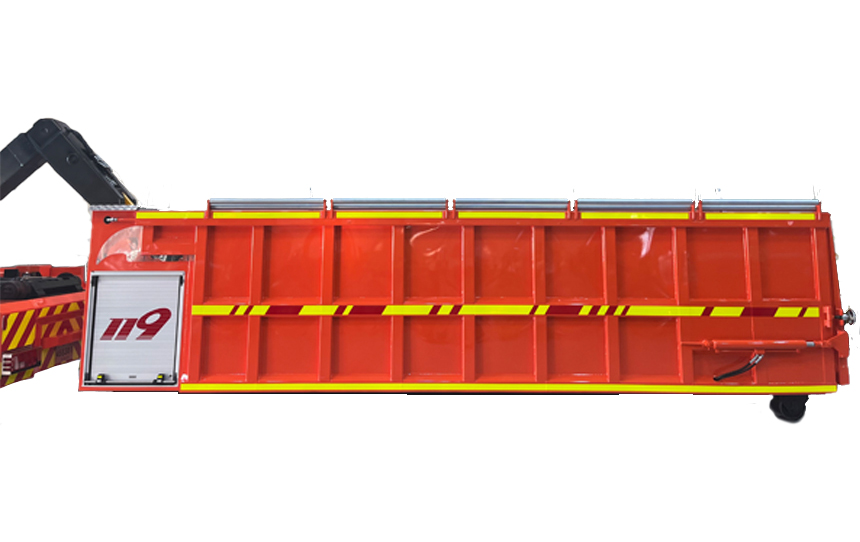

	Container specifications : 6,000L * 2,300W * 1,400H
	Container watertightness : Less than 1ℓ /Hour
	Automatic opening and closing of rear gate
Control system	Wired/wireless remote control

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
